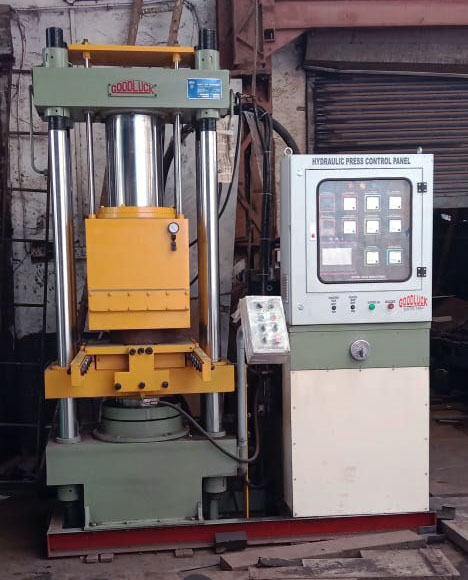

Vacuum Rubber Moulding Machine
We are engaged in offering a distinguished range of Two Layer Rubber Compression Molding Machines. The provided press is widely used in automobile and engineering industry. It is precisely examined by quality inspectors in accordance with set industry features.
SAILENT FEATURES
- Our design department keeping in view the latest trend, designs machinery with the help of cadd systems to achieve better accuracy & precision.
- No air entrapment while moulding.
- Our vacuum press is provided with the most hi-tech vacuum system which provides vacuum suction of 650 700 hg/2 sec, which ensures zero air entrapment.
- Equipped with high speed hydraulic unit with an optional hydraulic proportional system
- Equipped with automatic mould handling system which are very convenient for two plates, three plates or four plates mould. Which can be opened inside or outside the press with auto demoulding system as optional.
- Shorter curing times resulting in high production.
- Very simple & sturdy structure for easy maintenance & efficient working.
Technical Specifications
| MODEL NO. | GLIVP-75 | GLIVP-100 | GLIVP-150 | GLIVP-200 | GLIVP-250 | GLIVP-300 | GLIVP-350 | GLIVP-400 | GLIVP-500 |
| PLATEN SIZE (MM) | 360×360 | 410×410 | 460×460 | 510×510 | 610×610 | 660×660 | 760×760 | 800×850 | 1000×1000 |
| MACHINE TONNAGE | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| RAM SIZE DIA (MM) | 220 MM | 250 MM | 300 MM | 350 MM | 400 MM | 450 MM | 500 MM | 550 MM | 600 MM |
| DAYLITE GAP | 500 MM | 500 MM | 500 MM | 400-500 MM | 400-500 MM | 400-500 MM | 400-500 MM | 500-800 MM | 500-900 MM |
| MAN MOTOR | 5 HP | 5 HP | 5 HP | 7.5 HP | 10 HP | 10 HP | 15 HP | 15 HP | 20 HP |
| MAIN RAM STROKE | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM |
